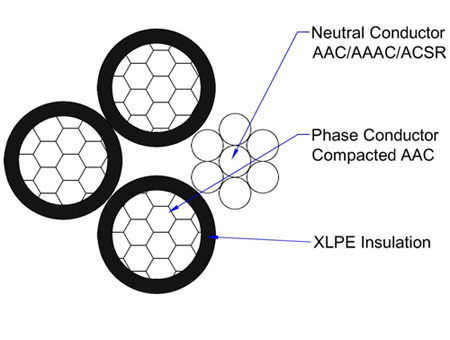

Product structure view
Voltage: 0.6/1Kv
Phase conductor: Aluminum(AAC)
Neutral messenger: AAC/AAAC/ACSR
Insulated: PE/PVC/XLPE/LEPE/HDPE
Color: Black or as your request.
Standards: IECA or according to your requirement
Packaging: Wooden or Wooden Iron Drum.
Application: Overhead power transmission
Application: Used to supply 3-phase power, usually from a pole-mounted transformer, to the user’s service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Specifications:
•B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
•B-231 Aluminum Conductors, Concentric-Lay-Stranded.
•B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
•B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
•B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474 .
Please Choose the specification you need，meanwhile, we can customize for you，our competitive price will send you in 12 hours.
Quadruplex cable specification parameter sheet
| Quadruplex -AAC Conductor & Neutral Messenger | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code Word | AAC Phase Conductor | AAC Neutral Messenger | Weight | Ampacity | ||||||
| AWG or Kcmil | No of Strands | Insulation thickness | AWG or Kcmil | No of Strands | Breaking Strength | Pe | Xlpe | Pe | Xlpe | |
| Mils | Lbs | Lbs/Mft | Lbs/Mft | 70°C | 90°C | |||||
| Haiotis | 6 | 1 | 45 | 6 | 7 | 563 | 100.6 | 103.8 | 59 | 69 |
| Petella | 6 | 7 | 45 | 6 | 7 | 563 | 107.8 | 111.7 | 59 | |
| Fusus | 4 | 1 | 45 | 4 | 7 | 881 | 149.4 | 153.2 | 78 | 91 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 159 | 163.9 | 78 | |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 239.7 | 245.9 | 106 | 123 |
| Snail | 1/0 | 7 | 60 | 1/0 | 7 | 1350 | 387 | 397.6 | 143 | 167 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 387 | 397.6 | 143 | |
| Purpura | 1/0 | 19 | 60 | 1/0 | 7 | 1990 | 382.4 | 392.4 | 143 | |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 476.7 | 488.6 | 165 | 193 |
| Trophon | 2/0 | 19 | 60 | 2/0 | 7 | 2510 | 470.9 | 482.1 | 165 | |
| Melita | 3/0 | 19 | 60 | 3/0 | 19 | 3310 | 581.3 | 593.9 | 192 | 224 |
| Portunus | 4/0 | 19 | 60 | 4/0 | 19 | 4020 | 719.4 | 733.7 | 224 | 262 |
| Nannynose | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 1161.7 | 1185.5 | 295 | 345 |
| Quadruplex Service Drop-Alloy | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code* Word | Phase Conductor | Bare | Weight | Allowable | |||||||
| Neutral Messenger | Per 1000 ft.(lbs.) | Ampacities+ | |||||||||
| Size(AWG or kcmil) | Strand- ing | Insul. Thick. (mils) | Equiv. Dia. (AWG)++ | Size++ (kcmil) | Strand- ing | Rated Strength (lbs). | XLP | POLY | XLP | POLY | |
| 6201 ALLOY NEUTRAL-MESSENGER | |||||||||||
| Bay | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 137 | 137 | 75 | 60 |
| French Coach | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 146 | 146 | 75 | 60 |
| German Coach | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 205 | 205 | 100 | 80 |
| Arabian | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 217 | 217 | 100 | 80 |
| Belgian | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 328 | 328 | 135 | 105 |
| Shetland | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 519 | 519 | 180 | 140 |
| Thoroughbred | 2/0 | 11 | 60 | 2/0 | 155.4 | 7 | 5390 | 639 | 639 | 205 | 160 |
| Trotter | 3/0 | 17 | 60 | 3/0 | 195.7 | 7 | 6790 | 789 | 789 | 235 | 185 |
| Walking | 4/0 | 18 | 60 | 4/0 | 246.9 | 7 | 8560 | 977 | 977 | 275 | 210 |
Please send us your specification, our competitive price will send you in 12 hours.
| Quadruplex Service Drop-ACSR | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Code* Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000 ft.(Ibs.) | Allowable Ampacities+ | ||||||
| Size (AWG or kcmil) | Strand-ing | Insul. Thick. (mils) | Size (AWG or kcmil) | Strand-ing | Rated Strength (Ibs). | XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Morochuca | 6 | 1 | 45 | 6 | 6/1 | 1190 | 145 | 145 | 75 | 60 |
| Chola | 6 | 7 | 45 | 6 | 6/1 | 1190 | 153 | 153 | 75 | 60 |
| Morgan | 4 | 1 | 45 | 4 | 6/1 | 1860 | 217 | 217 | 100 | 80 |
| Hackney | 4 | 7 | 45 | 4 | 6/1 | 1860 | 229 | 229 | 100 | 80 |
| Palomino | 2 | 7 | 45 | 2 | 6/1 | 2850 | 347 | 347 | 135 | 105 |
| Costena | 1/0 | 9 | 60 | 1/0 | 6/1 | 4380 | 549 | 549 | 180 | 140 |
| Grullo | 2/0 | 11 | 60 | 2/0 | 6/1 | 5310 | 677 | 677 | 205 | 160 |
| Suffolk | 3/0 | 17 | 60 | 3/0 | 6/1 | 6620 | 837 | 837 | 235 | 185 |
| Appaloosa | 4/0 | 18 | 60 | 4/0 | 6/1 | 8350 | 1038 | 1038 | 275 | 210 |
| Gelding | 336.4 | 19 | 80 | 4/0 | 6/1 | 8350 | 1494 | 1494 | 370 | 280 |
| Bronco | 336.4 | 19 | 80 | 336.4 | 18/1 | 8680 | 1568 | 1568 | 370 | 280 |
Please send us your specification, our competitive price will send you in 12 hours.
