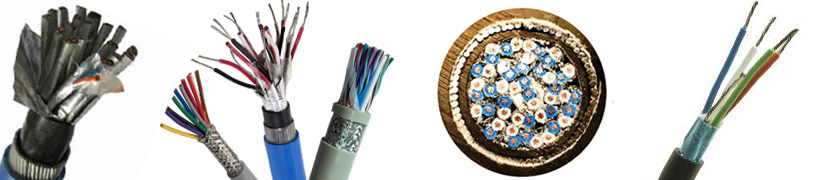

Instrumentation Cable

Professional instrument cable manufacturer from China, Meet your kinds of requirement instrument cable, With over 30 years production experience and 15 years export experience, factory price without any third party,On-time delivery..
The other instrument cable  size can be customized according to your requirement.

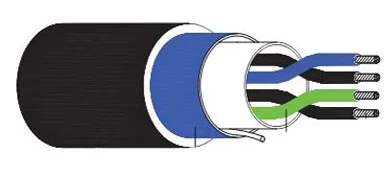

Individual Screen Instrument Cable

overall screen instrument cable

Get a free quote by E-mail: sales@huadongcablegroup.com

Product Feature
Conductor:
Plain annealed circular stranded copper conductor, conform to BS 6360 class 2.
Insulation: PE( polyethylene)/PVC.
Pairing: Two insulated cores shall be uniformly twisted together to form a pair with maximum bay length of 100mm.
Cabling: twisted pairs are laid up to together, if necessary filled with non-hygroscopic material Compatible with the insulation.
Overall screening: accumulated pars screen with aluminum/mylar tape. helically applied with tghe metallic side down, in electrical connect with tinned annealed copper drain wire of 0.5mm2
Sheath: PVC

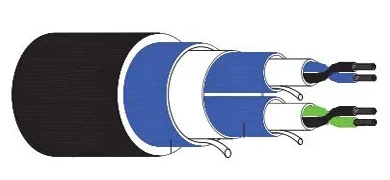

Individual+Overall Screen Instrument Cable

Individual+Overall Screen Instrument Cable

Get a free quote by E-mail: sales@huadongcablegroup.com

Product Feature
Conductor:
plain annealed circular stranded copper conductor, conform to BS 6360 class 2.
Insulation:PE(polyethylene)
Pairing:  two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100mm.
Pair identification: Color code as per appendix A.
Individual screening: each pair screened with aluminum/maylar tape,hlically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
Cabling: twisted pairs are laid up together, if necessary filled with nonhygroscopic material compatible with the insulation.
Overall screening: Accumulated pairs screened with aluminum/mytar tape, helically applied with the metallic side down in electrial contact with a tinned annealed copper drain wire 0.5mm2
Sheath: PVC(polyvinyl chioride)

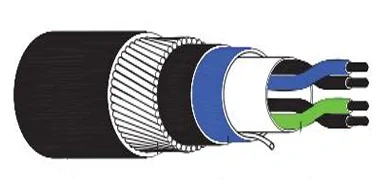

Armoured Overall Screen Instrument Cable

Armoured Overall Screen instrument Cable

Get a free quote by E-mail: sales@huadongcablegroup.com

Product Feature
Conductor:
plain annealed circular stranded copper conductor, conform to BS 6360 class 2.
Insulation: PE(polyethylene)
Pairing: two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100mm.
Pair identification: Color code as per appendix A.
Cabling: twisted pairs are laid up togeter, if necessary filled with non-hygroscopic material compatible with the insulation.
Overall screening: Accumulated pairs screened with aluminum/mytar tape, helically applied with the metallic side down in electrical contact with a tinned annealed copper drain wire 0.5mm2
Bedding: PE, color black
Armoring: Galvanized steel round wire over the bedding.
Sheath: PVC(polyvinyl chioride)

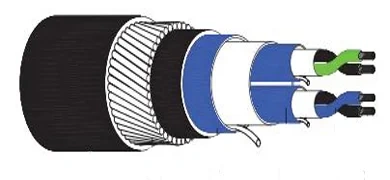

Armoured Individual+Overall Screen Instrument Cable

Armoured Individual+Overall Screen Instrument Cable

Get a free quote by E-mail: sales@huadongcablegroup.com

Product Feature
Conductor:
plain annealed circular stranded copper conductor, conform to IEC 60228 or BS 6360 class 2.
Insulation: PE (polyethylene)
Pairing: two insulated cores shall be uniformly twisted together to form a pair with maximum lay length of 100mm.
Pair identification: Color code as per appendix A.
Overall screening: each pairs screened with aluminum/mytar tape, helically applied with the metallic side down in electrical contact with a tinned annealed copper drain wire 0.5mm2
Cabling: twisted pairs are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation.
Overall screening: Accumulated pairs screened with aluminum/mytar tape, helically applied with the metallic side down in electrical contact with a tinned annealed copper drain wire 0.5mm2
Bedding: PE, color black
Armoring: Galvanized steel round wire over the bedding.
Sheath: PVC(polyvinyl chioride)

Application:  instrument cable suitable for fixed installations in damp locations and open spaces. The electrostatic screen protects against outer interference fields

Standards: BS 7917; IEC 60331-31 Fire resistant; IEC 60332-3A Flame retardant; IEC 60754-1; IEC 60754-2 Corrosivity IEC 61034-2 Smoke density Cold bend and impact (-40°C) (on request) CSA C22.2 No. 38-95 (on request)

instrument cable

Request an OEM or Custom Quote

Let's together work as for your project.
Starting custom your ideal size, our factory price will send you in 12 hours.
E-mail: sales@huadongcablegroup.com

* Your Name
* Your Email

Choice The Voltage
300V/500V600V/1000V   Or Others:

Choice The Conductor
CopperTinned Copper   Or Others:

Choice The Insulation
XLPEPVCPELSZH   Or Others:

Choice The Size
Fill your ideal Size:

Choice The Armoured
galvanized round steel wiresNon-armoured    Or Other:

Choice The Types
Individual+Overall ScreenIndividual ScreenOverall Screen   Or Other:

Your Phone Number
Your Country

* Your Requirement

Why Choose Us?

We have 4 cable workshops, everyone about 10000 square meters, 20 sets advanced cable produce equipment, 20 high technology engineers, 150 staffs,  Every production process has been strictly checked by our professional technical engineers.

huadong cable workshop

Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@huadongcablegroup.com

Package & Delivery: Power cable package by iron or wooden drum or according to client’s requriement.

abc cable packaging

Customer Case:Our cable products have been exported to more than 30 countries, such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia,Oceania countries and etc.
