BS Standard ABC cable

ABC (Aerial Bundled) Cable BS 7870-5 Standard

ABC Cable NFC 33-209 Stasndard

Check Our Production Vidoes:



If you have other requirement, Please, we will manufacture it according to your request.

Application

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000 V incl.

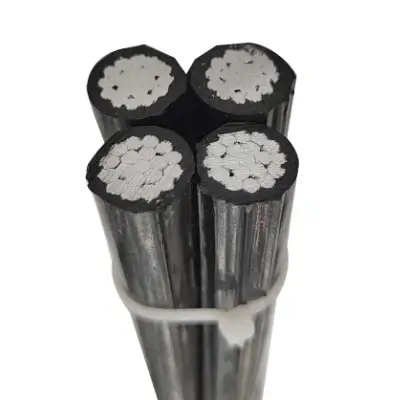

4 Core ABC Cable

aluminum quadruplex urd wire

3 core ABC Cable

aluminum triplex urd wire

2 core ABC Cable

aluminum Duplex urd wire

1 core ABC Cable

aluminum single urd wire

Construction

Conductor (for either phase, neutral or street lighting)The conductors shall be of aluminium 1350 wires and are compacted circular stranded(RM).
InsulationXLPE. 1, 2 and 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth.
Assembly2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.

Technical Data

Rated voltagekV0.6/1
Test voltageVeff kV4
Laying temperature°Cmin. -20
Operating temperature°C-30 ~ +80
Conductor temperature°Cmax. +80
Short-circuit temperature°C/smax. +130 /5
Bending radius (min.)18 × o of cable

Dimensions

ABC Cable -BS 7870-5 Standard
number of cores x nominal cross sectionmax. conductor- resistancemin. breaking load of conductor strandCurrent rating in the airOuter diameterTotal weight
mm^2Ohm/kmkNAmmkg/km
1x 16 RM1,9102,5728074
1x 25 RM1,2004,010790106
1x 35 RM0,8685,5132105138
1x 50 RM0,6418,0165118182
1x 70 RM0,44310,7205130252
1x 95 RM0,32013,7240154333
1x 120 RM0,25318,6290170408
1x 150 RM0,20623,2334190502
1x 185 RM0,16428,7389210611
1x 240 RM0,12537,2467240801
2x 16 RM1,9102,572156147
2x 25 RM1,2004,0107180208
2x 35 RM0,8685,5132200277
2x 50 RM0,6418,0165235361
2x 70 RM0,44310,7205254505
2x 95 RM0,32013,7240303666
2x 150 RM0,20623,23343801004
4x 16 RM1,9102,572188286
4x 25 RM1,2004,0107212430
4x 35 RM0,8685,5132241553
4x 50 RM0,6418,0165278746
4x 70 RM0,44310,72053181009
4x 95 RM0,32013,72403781332
4x 120 RM0,25318,62905441632
4x 50 + 1x 25 RM0,641 / 1,2008,0 / 4,0165 / 107319814
4x 50 + 1x 35 RM0,641 / 0,8688,5 / 5,5165 /132319845
4x 70 + 1x 25 RM0,443 / 1,20010,7 / 4,0205 / 1073601105
4x 70 + 2x 25 RM0,443 / 1,20010,7 / 4,0205 / 1074001217
4x 95 + 1x 25 RM0,320 / 1,20013,7 / 4,0240 / 1074181438
4x 95 + 2x 25 RM0,320 / 1,20013,7 / 4,0240 / 1074201544
4x120 + 1x 25 RM0,253 / 1,20018,6 / 4,0290 / 1075902050

Please check the specification, Our competitive price will send you in 12 hours.we can customize other cross-sections on request,
