25mm2~400mm2 PVC/XLPE Power Cable

Professional power cable manufacturer from China, With over 30 years production experience and 15 years export experience, factory price without any third party. Can customize according to your requirement.

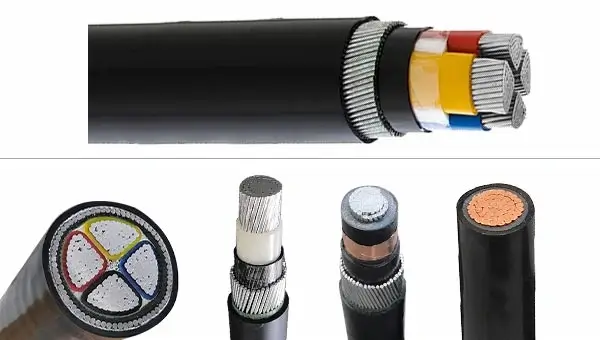

0.6/1kv Amoured/Unarmoured PVC/XLPE Power Cable

Product Feature
Voltage: 0.6/1KV
Conductor: Aluminum or Copper
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Insulation: PVC/LSF/Fire Resistant
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-300mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.

Get a free quote by E-mail: sales@huadongcablegroup.com

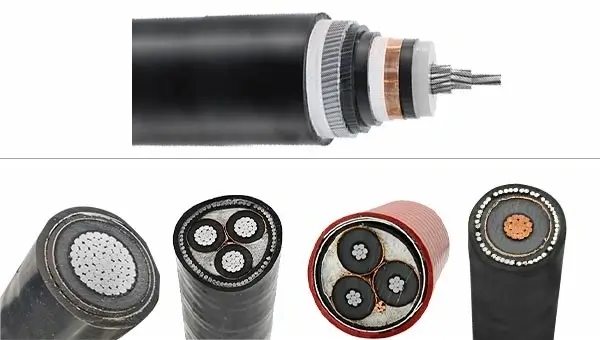

1/35kv Amoured/Unarmoured XLPE Power Cable

Product Feature
Voltage: 1.8/3KV, 3.6/6KV, 6/10KV, 8.7/10KV, 10KV, 11KV, 8.7/15KV, 18/30KV,33KV, 26/35KV
Conductor: Aluminum or Copper
Armoured: Unarmoured or Armoured(1.Galvanized steel wires/steel tape for 3 core; 2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core)
Insulation: XLPE (Cross-linked Polyethylene)
Size: Up to 1000mm2 for 1 core, up to 800mm2 for 3 cores
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.

Get a free quote by E-mail: sales@huadongcablegroup.com

Request an OEM or Custom Quote

Let's together work as for your project.
E-mail: sales@huadongcablegroup.com

Choice The Voltage
0.6/1kv1.8/3KV3.6/6KV6/10KV10KV11KV15kv8.7/15KV18/30KV33KV26/35KV   Or Others:

Choice The Conductor
AluminumCopper   Or Others:

Choice The Insulation
XLPEPVCLSZH   Or Others:

Choice The Armoured
SWASTAAWAATANon-armoured   Or Others:

Choice The Core
1Core2Core3Core4Core5Core  Or Other:

Choice The Section Area
6mm210mm216mm225mm235mm250mm270mm295mm2120mm2185mm2240mm2300mm2400mm2500mm2630mm2800mm21000mm2   Or Other:

Your Name
* Your Email
Your Phone Number
Your Country

* Your Requirement

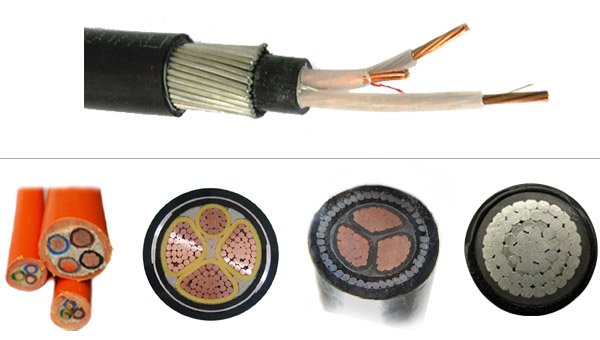

Power cable including: 0.6/1kv armoured/unarmoured copper/aluminum conductor  XLPE/PVC insulated  power cable and 1/35kv armoured/unarmoured copper/aluminum conductor XLPE insulated power cable.

Cu ConductorAl ConductorName
VVVLVCopper/Aluminium core,PVC insulated,PVC sheathed power cable
VVVLVCopper/Aluminium core,PVC insulated,PE sheathed power cable

Application: Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions

TypeNo. of CoreNominal cross-section of conductor mm2
Cu(AL)/PVC/PVC1,2,3,4,5,3+1,4+1,3+21.5-1000
Number of Cores & Nominal Cross-section Area
Number of CoresSection Area (mm2)
11.5 – 500
21.5 – 500
32.5 – 300
3+14 – 300
42.5 – 300
4+12.5-300

Starting custom your ideal size, the factory price will send you in 3 hours.
E-mail: sales@huadongcablegroup.com

TypeNo. of Core

Nominal cross-section

of conductor mm2

Cu(AL)/XLPE/PVC(PE)11.5-1000
Cu(AL)/XLPE/ATA/PVC(PE)Cu(AL)/

XLPE/AWA/PVC(PE)

Cu(AL)/XLPE/STA/PVC(PE)2,3,4,51.5-400
Cu(AL)/XLPE/SWA/PVC(PE)
Cu(AL)/XLPE/SWA/ATA/PVC(PE)3+1,4+1,3+22.5-400

In 3+1cores and 3+2cores should conform to specification of following table:

Nominal cross-sectionMain core2.5461016253550
Neutral core1.52.54610161625
Nominal cross-sectionMain core7095120150185240300400
Neutral core3550707095120150185

Starting custom your ideal size, the factory price will send you in 3 hours.
E-mail: sales@huadongcablegroup.com

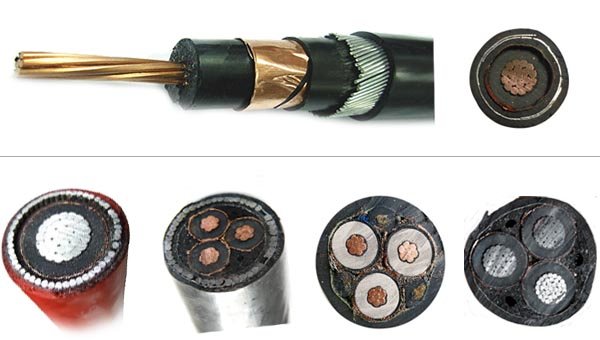

TypeCoreRate voltage  kV
3.6/6、6/66/10、8.7/108.7/15、12/2018/20、26/35
Nominal Cross Section mm2
YJVYJLV125~30025~30035~30050~300
YJVYJLV325~30025~40035~30050~300
TypeNameApplication
Cu conductorAL Conductor
YJVYJLVXLPE Insulated,PVC or PE S heathed Power Cablefor laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid.

Type:

TYPEDescription of CableMain Applications
CU coreAL core
YJV22YJLV22XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power CableFor laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force.
YJV23YJLV23
YJV32YJLV32XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power CableFor laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force.
YJV33YJLV33
YJV42YJLV42XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power CableAble to bear positive pressure and pulling force
YJV43YJLV43

ASTM standard:

Rated Voltage (V)5001-80008001-1500015001-2500025001-2800028001-3500035000-46000
Core Number1Core 3Core
Cross-section1C6AWG~1600kcmil2AWG~1600kcmil1AWG~1600kcmil2AWG~1600kcmil1/0AWG~1600kcmil
AWG or kcmil3C6AWG~1600kcmil2AWG~1600kcmil1AWG~1600kcmil2AWG~1600kcmil4/0AWG~1600kcm

Starting custom your ideal size, the factory price will send you in 3 hours.
E-mail: sales@huadongcablegroup.com

power Cable factory

Starting custom your ideal size, the factory price will send you in 3 hours.
E-mail: sales@huadongcablegroup.com

Package & Delivery: packaging by iron or wooden drum or according to client’s requirement.
