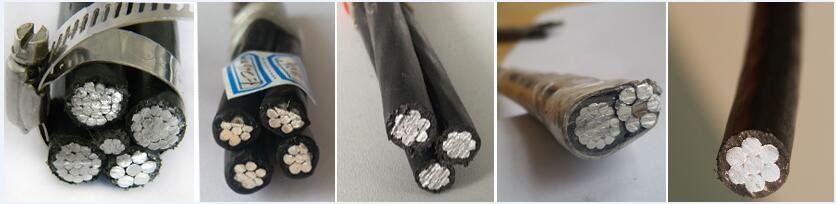

ABC (Aerial Bundle) Cable NFC 33-209 Standard

Check Our Production Vidoes:

If you have other requirement, Please, we will manufacture it according to your request.

Application: the aerial bundled cables designed for fixed installation as overhead power lines up to 1000 V incl,To supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 90℃

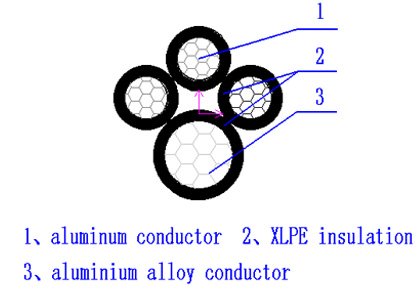

3×25+54.6mm2 XLPE ABC Cable

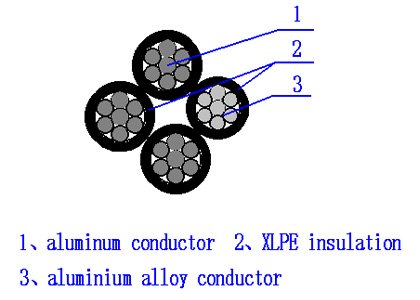

3×35+54.6mm2 XLPE ABC Cable

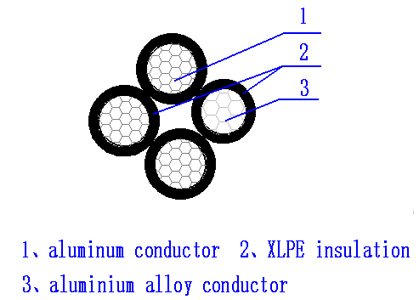

3×70+54.6mm2 XLPE ABC Cable

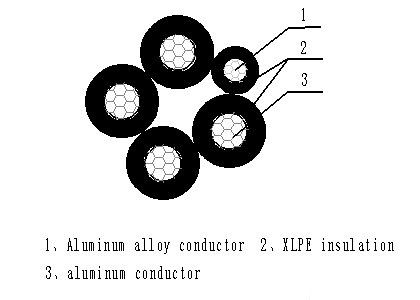

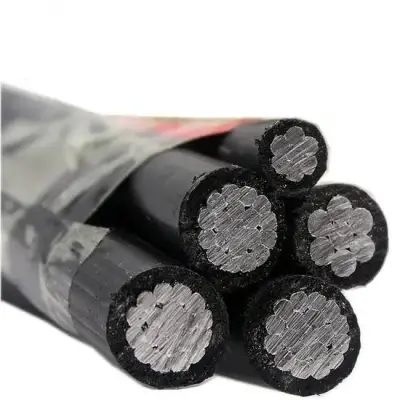

3+1+k core xlpe insulated abc cable

Construction

Phase Conductor	Aluminium conductor, round stranded compressed (RM).
Neutral Conductor	Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).
Insulation	XLPE. Load-bearing / neutral core – marked with standard and producers phase core – marked with digits 1, 2, 3.
Assembly	Cores and the neutral, conductor stranded together in right-hand lay, additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV/Hz	4/50
Laying temperature	°C	min. -5
Operating temperature	°C	-30 ~ +90
Conductor temperature	°C	max. +90
Short-circuit temperature	°C/s	max. +250 /5
Bending radius (min.)	mm	20 × O of cable

NFC 33-209 Standard ABC Cable Dimensions

ABC Cable NFC 33-209 Standard
Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2x10 RM	12.8	93	3.08	1.5	38
4x10 RM	15.4	183	3.08	1.5	38
2x16 RM	14.8	129	1.91	2.3	72
2x16 RN + 2x1.5 RE	14.8	176	1.910 / 12.100	2.3	72
4x16 RM	17.8	257	1.91	2.3	72
4x16 RN + 2x1.5 RE	17.8	304	1.910 / 12.100	2.3	72
2x25 RM	18	202	1.2	3.8	107
2x25 RM + 2x1.5 RE	18	249	1.200 / 12.100	3.8	107
4x25 RM	21.7	404	1.2	3.8	107
4x25 RM + 2x1.5 RE	21.7	451	1.200 / 12.100	3.8	107
2x35 RM	20.8	269	0.868	5.2	132
2x35 RM + 2x1.5 RE	20.8	316	0.868 / 12.100	5.2	132
4x35 RM	25.1	539	0.868	5.2	132
4x35 RM + 2x1.5 RE	25.1	586	0.868 / 12.100	5.2	132
2x50 RM	23.4	352	0.641	7.6	165
2x50 RM + 2x1.5 RE	23.4	399	0.641 / 12.100	7.6	165
1x54.6 RM + 3x25 RM	21.7	507	0.630 / 1.200	3.8	107
1x54.6 RM + 3x25 RM + 1x16 RM	24.3	573	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 2x16 RM	29.7	639	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x25 RM + 3x16 RM	31.1	705	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1x54.6 RM + 3x35 RM	25.1	615	0.630 / 0.868	5.2	132
1x54.6 RM + 3x35 RM + 1x16 RM	28.1	680	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 2x16 RM	34.3	748	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 3x16 RM	35.9	814	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1x54.6 RM + 3x35 RM + 1x25 RM	28.1	714	0.630 / 0.868 / 1.200	5.2/3.8	132/107
1x54.6 RM + 3x50 RM	28.2	741	0.630 / 0.641	7.6	165
1x54.6 RM + 3x50 RM + 1x16 RM	31.6	806	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 2x16 RM	38.6	875	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 3x16 RM	40.4	940	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1x54.6 RM + 3x50 RM + 1x25 RM	31.6	841	0.630 / 0.641 / 1.200	7.6/3.8	165/107
1x54.6 RM + 3x70 RM	33	950	0.630 / 0.443	10.2	205
1x54.6 RM + 3x70 RM + 1x16 RM	37	1014	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 2x16 RM	45.2	1083	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 3x16 RM	47.3	1148	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1x54.6 RM + 3x70 RM + 1x25 RM	37	1048	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 2x25 RM	45.2	1150	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x70 RM + 3x25 RM	47.3	1250	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1x54.6 RM + 3x95 RM	37.4	1176	0.630 / 0.320	13.5	240
1x54.6 RM + 3x95 RM + 1x16 RM	41.9	1243	0.630 / 0.320 / 1.910	13.5/2.3	240/72
