duplex cable

Duplex Service Drop Cable

Duplex Service drop cable

Check Our Production Vidoes:



If you have other requirement, Please, we will manufacture it according to your request.

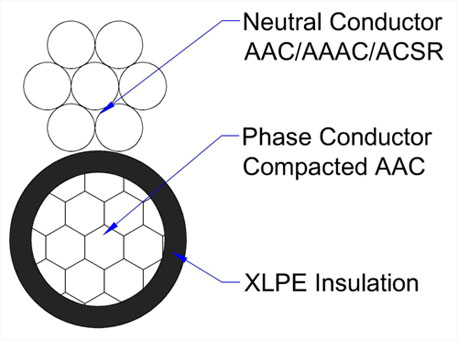

duplex Service wire structure

Product structure view


Voltage:
0.6/1Kv
Phase conductor:  Aluminum(AAC)
Neutral messenger:  AAC/AAAC/ACSR
Insulated: PE/PVC/XLPE/LEPE/HDPE
Standards: IECA or according to your requirement
Packaging:  Wooden or Wooden Iron Drum.
Application: Overhead power transmission

Application:
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction:
duplex service drop cable meets or exceeds the following ASTM specifications:
•B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
•B-231 Aluminum Conductors, Concentric-Lay-Stranded.
•B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
•B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
•B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
duplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Please Choose the specification you need,meanwhile, we can customize for you,our competitive price will send you in 12 hours.

Duplex service drop cable specification parameter sheet


Duplex Service Drop-AAC
Code* WordPhase ConductorBareWeightAllowable
Neutral MessengerPer 1000 ft.(lbs.)Ampacities+
Size (AWG or kcmil)Strand- ingInsul. Thick. (mils)Size (AWG or kcmil)Strand- ingRated StrengthXLPPOLYXLPPOLY
AAC NEUTRAL-MESSENGER
Pekingese61456756361618570
Collie67456756364648570
Dachshund414547881929211590
Spaniel474547881969611590
Doberman2745271350147147150120
malumute1/09601/0191990234234205160
Please send us your specification, our competitive price will send you in 12 hours.



Deplex Service Cable-AAAC
Code* WordPhase ConductorBareWeightAllowable
Neutral MessengerPer 1000 ft.(lbs.)Ampacities+
Size(AWG or kcmil)Strand- ingInsul. Thick. (mils)Equiv. Dia. (AWG)++Size++ (kcmil)Strand- ingRated Strength (lbs).XLPPOLYXLPPOLY
6201 ALLOY NEUTRAL-MESSENGER
Chihuahua6145677111065658570
Vizsia6745677111068688570
Harrier41454771760999911590
Whippet4745477176010310311590
Schnauzer27452772800157157150120
Heeler1/09601/0774460250250205160
Please send us your specification, our competitive price will send you in 12 hours.

Duplex Service Drop-acsr
Code* WordPhase ConductorBare Neutral MessengerWeight Per 1000 ft.(Ibs.)Allowable Ampacities+
Size (AWG or kcmil)Strand-ingInsul. Thick. (mils)Size (AWG or kcmil)Strand-ingRated Strength (Ibs).XLPPOLYXLPPOLY
ACSR NEUTRAL-MESSENGER
Setter614566/1119072728570
Shepherd674566/1119075758570
Eskimo414546/1186011011011590
Terrier474546/1186011511511590
Chow274526/12850176176150120
Bull1/09601/06/14380280280205160
Please send us your specification, our competitive price will send you in 12 hours.

Why Choose Us?

  Product Process: We produce the service drop cable use the high quality aluminum material,Every production process has been strictly checked by our professional technical engineers.

Service drop cable produce process
Service drop cable produce process

Packaging&Delivery: Before shipment every types of cables have been rigorously tested.
ABC cable packaging-deliveryabc cable packaging
 If you want customize the cable, Please send us your requirement.

Customer Case:  We have exported wires and cables to more than 30 countries,such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia,Oceania countries and etc.
huadong cable-customerOur advantage:  Huadong cable group is a one of professional cable & wire factory in China,mainly production and sales cable, it located in the industrial zone in Zhengzhou, it has rich aluminum resources in the word, high quality and competitive price.

ABC Cable Packaging

abc cable storageIf you want learn more about huadong cable group factory information & cable price, please feel free leave the cable specification, our price list will send you in 12 hours.

 FAQ

1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.

Please feel free to leave your requirement, We will reply you in 12 hours.
