OPGW-Optical Fiber Composite Ground Wire

Professional OPGW Wire manufacturer from China, Meet your kinds of requirement OPGW cable. With over 30 years production experience and 15 years export experience, factory price without any third party.  The cable size can be customized and On-time delivery.

24 and 48 Core Fiber Optic Cable

▪ 12core,24core,36core,48core, 72core,96core
▪ Loose tube gel-filled
▪ -coding per TIA/EIA 598B
* Central Strength Member:
▪Epoxy/glass rod
* Inner Jacket:
▪ Black UV-and moisture-resistant polyethylene (PE)
* Armor:  ▪ 0.006″ corrugated coated steel tape
* Outer Jacket:
▪ Black UV- and moisture-resistant polyethylene (PE)
Starting custom your ideal size By E-mail: sales@huadongcablegroup.com

Learn More...

AlumaCore Optical Ground Wire (OPGW)

1.Preferred option for easy handling and splicing
2.Thick-walled aluminum pipe provides excellent crush resistance
3.Hermetically sealed pipe protects optical fibers
4.Outer wire strands selected to optimize mechanical and electrical properties
5.Optical sub-unit provides exceptional mechanical and thermal protection for fibers
6.Dielectric color-coded optical sub-units available in fiber counts of 6, 8, 12, 18 and 24
7.Multiple sub-units combine to achieve fiber counts up to 144
Starting custom your ideal size By E-mail: sales@huadongcablegroup.com

CentraCore Optical Ground Wire (OPGW)

1.Fiber counts up to 96 in same diameter product
2.Small diameter, low weight reduces retrofit impact
3.Laser-welded, hermetically sealed stainless steel tubes provide mechanical and thermal protection for fibers
4.Thick-walled aluminum pipe provides crush resistance and boosts fault current rating
5.Outer wire strands selected to optimize mechanical and electrical properties
6.Fiber grouped in bundles of 12 for ease of splicing prep
Starting custom your ideal size By E-mail: sales@huadongcablegroup.com

HexaCore Optical Ground Wire (OPGW)

1.Fiber counts up to 432 or higher if needed
2.Laser-welded, hermetically sealed stainless steel tubes provide mechanical and thermal protection for optical fibers
3.High load, long span capability
4.Each stainless steel tube is uniquely identified for organization at splice locations
5.Stranded wires selected to optimize mechanical and electrical properties of cable
6.Anti-rotational devices usually not required for installation, depending on conditions
Starting custom your ideal size By E-mail: sales@huadongcablegroup.com

Stainless Steel Fiber Optic Tubes

1.Umbilical Cables
2.Downhole Cables for Oil & Gas
3.Towed Arrays
4. High Temperature Cables
5.Hybrid Cables
6.Sensor Cable
7.OPGW
Starting custom your ideal size By E-mail: sales@huadongcablegroup.com

ADSS Cable-All Dielectric Self-supporting Aerial Cable

Application:
1. ADSS fiber cables are erect on the same pole with power line in new and old power line.
2. Areas of strong electric field, multi-thunder, etc
Characteristics:
☆ Small cable Dia, light weight, 1,500m span, low attached load on tower.
☆ Tension strength is over 90KN.
☆ Non-metal structure, good insulation, anti-thunder
Starting custom your ideal size By E-mail: sales@huadongcablegroup.com

Learn More...

OPGW Application:

Optical fiber composite ground wire [OPGW] is suitable for installation on new power lines with double function of ground wire and communication. Especially for installation on normal voitage and extra high voltage power lines. OPGW can replace conventional ground wire of old power line with increasing fiber communication function. They conduct short circuit current and provide lightning resistance.

Starting custom your ideal size By E-mail: sales@huadongcablegroup.com

OPGW description:

1.OPGW cable is the short form of Optical Fiber Composite Overhead Ground Wire.
2.OPGW cable is suit for installation on new power lines with double function of ground wire and communication, especially for installation on normal voltage and extra high voltage power lines. OPGW can replace conventional ground wire of old power lines with increasing fiber communications function.
3. OPGW cables conduct short circuit current and provide lighting resistance.
4. OPGW cables are usually two structures. The central tube OPGW cable can obtain maximum optical fiber excess length in a smallest steel tube. The diameter of stainless steel tube is bigger than that of ACSR wire and aluminum alloy wire. The stainless steel tube is placed in the center of the stranded structure of the OPGW cable. Stranded OPGW cable can obtain secondary excess length; the diameter of stainless steel tube is consistent with diameter of aluminum alloy wire.

Parameter Date:

Starting custom your ideal size By E-mail: sales@huadongcablegroup.com

Why Choose Us?

Huadong Cable Group is a one of biggest cable manufacturers in China, over 15 years production and exporting experience. We have 4  advanced workshops,  20 sets testing equipment, 20 senior cable engineers, 150 staffs,  Every production process has been strictly checked by our professional technical engineers.

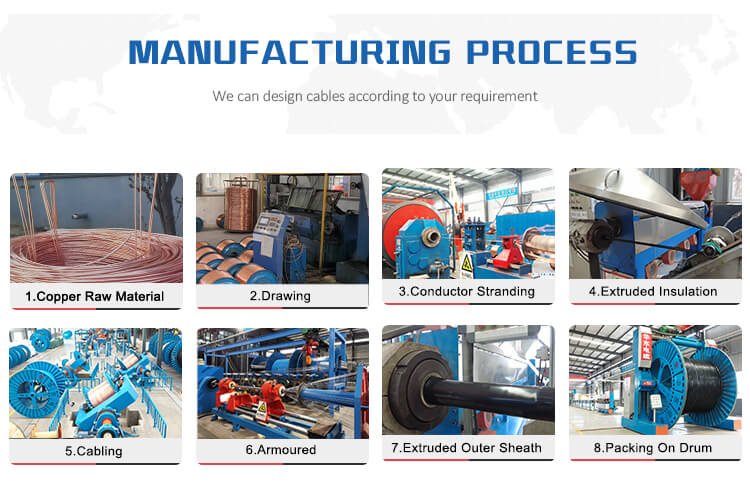

huadong cable workshop

Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: sales@huadongcablegroup.com

Package & Delivery: Power cable package by iron or wooden drum or according to client’s requriement.

abc cable packaging

Customer Case:Our cable products have been exported to more than 30 countries, such as: Russian, America, Yemen, South America, North America, Middle East, Africa, Asia,Oceania countries and etc.
