They are low voltage fixed wiring in armoured and unarmoured variants.

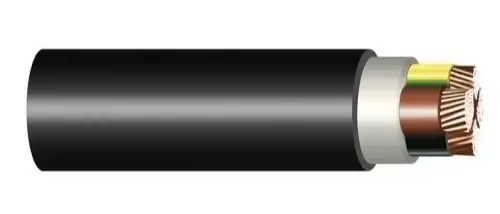

R2V cable (also known as XV or RV cable) are rigid unarmoured power and control cables, whilst U-1000 RVFV cable (also known as XAV cable) are the armoured equivalent.
R2V XAV XV RV and RVFV Cable Application
They are used for the supply of electricity in a wide range of semi-industrial and industrial applications with a voltage rating of 600/1000V. This including lighting remote control and telecontrol installation systems, and other electrical devices. The U-1000 R2V cable can be fixed on cable trays, within conduits or to walls. The U-1000 RVFV is constructed with additional two layers of steel tape armouring and so can also be used outdoors and in direct burial installations or where additional protection against mechanical stresses is required.

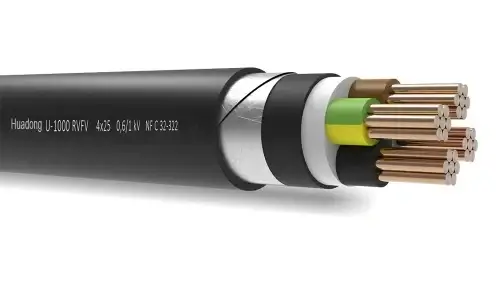

0.6 / 1 kV U-1000 RVFV – XAV XLPE PVC Power Cable
Voltage Rating Uo/U: 0.6/1kV Temperature Rating: -10°C to +90°C Conductor: 1.5mm² to 4mm²: Class 1 solid copper conductor
6mm² and above: Class 2 stranded copper conductor
*Class 2 stranded conductor available for these sizes on
request Insulation: XLPE (Cross-Linked Polyethylene) Inner Sheath: PVC (Polyvinyl Chloride)
Armour: Two steel tapes Sheath: PVC (Polyvinyl Chloride) Core Identification
2 core: Blue Brown
3 core: Black Brown Grey
3 core including earth: Blue Brown Green/Yellow Sheath Colour
Black Other colours available on request
Conductor: Copper Insulation: XLPE Bedding: PVC Sheath: PVC Core Identification: 1 core: Black
2 core: Blue Brown
3 core: Blue Brown Black (1.5mm2 and 2.5mm2 only)
3 core: Brown Black Grey
3 core including earth: Brown Blue Green/Yellow
4 core: Blue Brown Black Grey
4 core including earth: Blue Brown Black Green/Yellow
5 core: Blue Brown Black Grey Black
5 core including earth: Blue Brown Black Grey Green/Yellow
7 core and higher: Black cores with White numbers +Green/Yellow Sheath Colour: Black
